DESCRIPTION

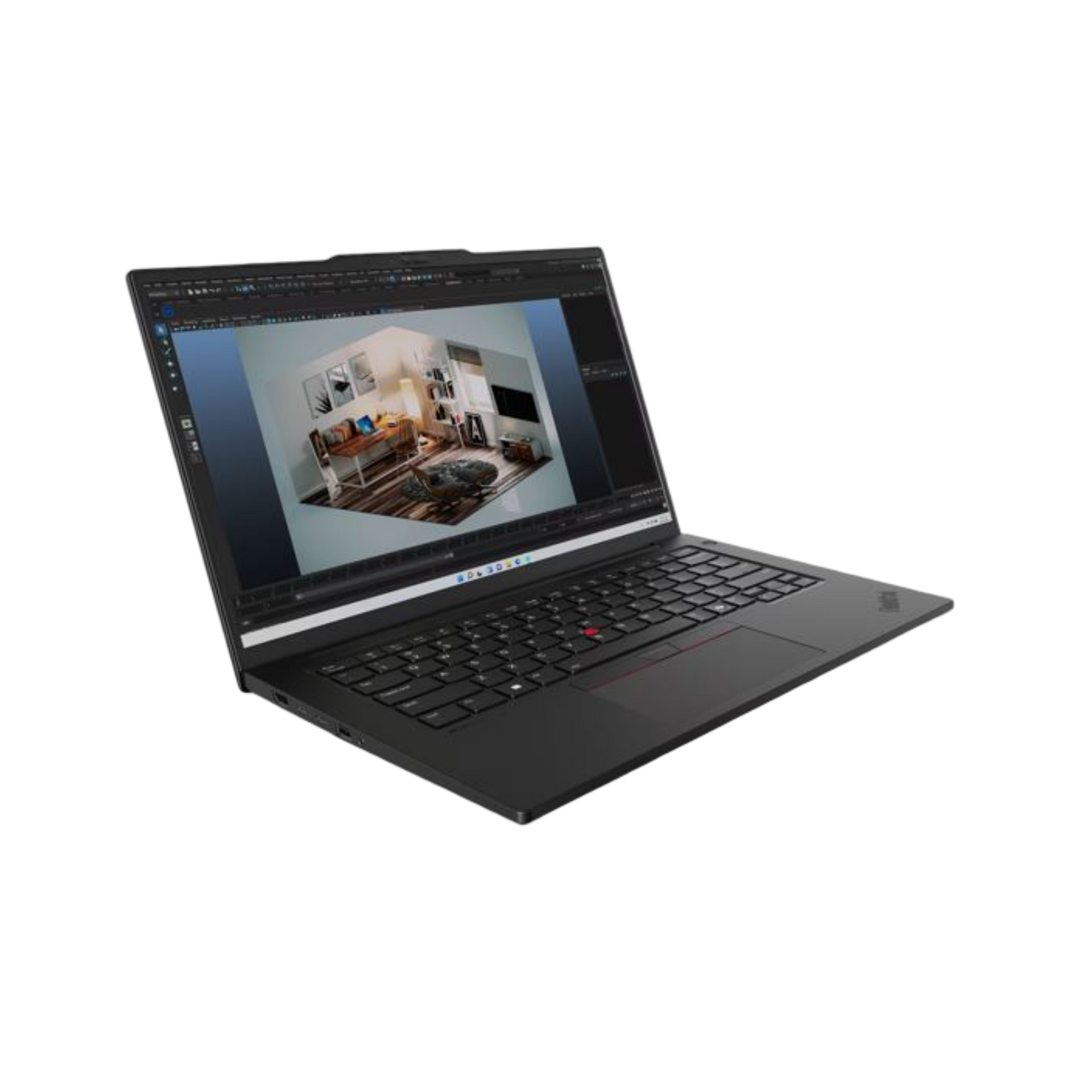

LENOVO ThinkPad P14S G6 14.5" WUXGA IR Intel U5-225H 16GB DDR5 512GB SSD Intel Arc 130T GPU Windows 11 Pro NPU 13 TOPS 3yr PREM 1.6kg
PERFORMANCE
Processor Intel® Core Ultra 5 225H, 14C (4P + 8E + 2LPE) / 14T, Max Turbo up to 4.9GHz, 18MB
AI PC Category AI-Ready Workstations
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Arc™ 130T GPU Functions as Intel Graphics
Chipset Intel® SoC Platform
Memory 1x 16GB SODIMM DDR5-5600 Non-ECC
Memory Slots Two DDR5 SODIMM / CSODIMM slots, dual-channel capable
Max Memory Up to 96GB (2x 48GB DDR5 CSODIMM)
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot One M.2 2280 PCIe® 4.0 x4 slot
Max Storage Support Up to one 2TB M.2 2280 Gen 5 Performance SSD
Card Reader No card reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Microphone 2x, Array
Camera 5.0MP + IR with Privacy Shutter and Human Presence Detection
Battery 57Wh
Power Adapter 100W USB-C® Slim (3-pin)
DESIGN
Display 14.5" WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz, Eyesafe®, TÜV Low Blue Light
Touchscreen None
Screen-to-Body Ratio 88%
Color Calibration AICCP Color Calibration
Pen Pen Not Supported
Keyboard Backlit, English
Dimensions (WxDxH) 325.5 x 227.6 x 11.2 / 15.1 (front / rear), 21.7 (maximum) mm 12.81 x 8.96 x 0.44 / 0.59 (front / rear), 0.85 (maximum) inches
Weight Models with integrated graphics | Starting at 1.60 kg (3.53 lbs)
Models with discrete graphics | Starting at 1.64 kg (3.61 lbs)
Case Color Black
Case Material Aluminium (Top), Aluminium (Bottom)
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software None
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
SIM Card None
Ethernet 100/1000M (RJ-45)
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x Thunderbolt™ 4, with USB PD 3.0
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (GbE RJ-45)
1x Security keyhole
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad P14s Gen 6 (Intel)
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader None
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Other Security Bottom cover tamper detection
Camera privacy shutter
Ultrasonic Human Presence Detection for IR camera
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Courier or Carry-in with 1-year Battery
Included Upgrade 3Y Premier Support Upgrade from 3Y Courier/Carry-in
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
ISV Certifications Please visit ISV certifications for Lenovo® Workstations
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
RoHS compliant
TCO Certified, generation 10
Mil-Spec Test MIL-STD-810H military test passed
